Product:

 FTS2000 Filter Tow Spray Retention System.

Application:

 The application of aqueous dispersion adhesive (PVA) fed by pressure pot, swirl pattern for tow retention (anchor line) adhesive on a filter making machine.

Overview:

 The Filter Tow Spray Retention System is designed to apply a wide coverage of adhesive to the filter paper, anchoring the tow.
Installed either as an additional component to the Kaymich GFH system or as a stand-alone system, the FTS2000 is suitable for a wide variety of filter makers and combiners.

Key Features

  • Non-contact application reduces bleed-through adhesive contamination compared to contact type applicators, when using highly porous paper, improving cleanliness and decreasing stoppoage for cleaning.
  • The swirl pattern ensures a wide coverage of adhesive without significantly reducing the paper coresta. Delivers improved tow security without significantly reducing paper porosity (typically less than 32K reduction on 500K paper applying 0.088 g/m), decreasing cost as the paper coresta (porosity) requirement is minimised.
  • Wide adhesive application from a single applicator. The width of the pattern can be changed but is normally around 10mm wide.
  • Ability to apply a wide variety of adhesive patterns.
  • Increases productivity as stoppage for applicator cleaning is reduced compared to contact applicator types.
  • Improves segment (tow) retention compared with single line applicator, reducing segment fall-out.
  • Simple ratchet style adjuster.
  • Easily installed.
  • Low maintenance requirements.
  • It replaces the requirement for multiple lines of tow retention, improving filter plug quality as the distortion caused by multiple solid longitudinal lines is eliminated.

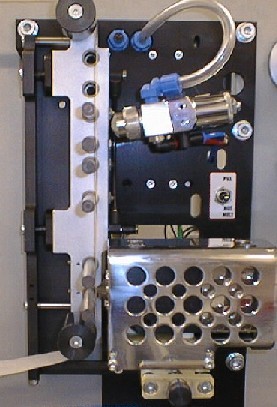

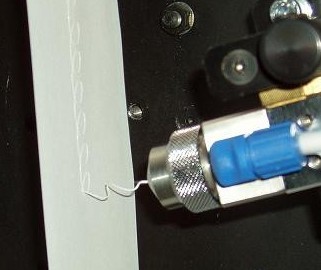

Spray valve located on Kaymich hot melt systemSwirl adhesive application from FTS2000

FAQs

Can the FTS system be used with multi segments filter?
Yes.

Can the FTS be used with the Kaymich GFH system?
Yes the FTS system can be sold as part of the GFH system or as a stand-alone applicator.

Can the FTS system be installed by the customer?
Yes, the system is easy to install. Optimum setting is dependent upon the machine speed, adhesive and paper used.

Note:

  • Application not proportional to machine speed, application pattern set for optimum operating speed only.
  • Minimum adhesive viscosity 500 centipoise.
  • Maximum adhesive viscosity 1500 centipoise.
  • Not to be used with lubricated air supplies.

Notes

  • Available as a stand alone system or as an option with Kaymich GFH system.
  • Pressure fed application is not variable in relation to making machine speed.
  • For pump fed system applying adhesive proportionally to machine speed, please contact Kaymich.
  • Minimum adhesive viscosity for pressure fed option 500 centipoise.
  • Maximum adhesive viscosity for pressure fed option 1500 centipoise.
  • Not to be used with lubricated air supplies.

Technical Specification

Suitable machines:
Hauni: All filter plug makers and combiners.
ITM: The Kaymich FTS2000 is offered as an optional extra, suitable for all ITM filter plug makers and combiners
Molins: All filter plug makers and combiners.
Sanjo: All filter plug makers.



Services required:
Dry, filtered, non-lubricated compressed air, 60 to 100 psi (4 to 7 bar).
Electrical voltage – 12 Vdc, 24Vdc or 110Vac (other voltages on request).
Electrical power – 5 Watts
CE compliant



Adhesive Recommendations:
Whilst our products are designed to work with a wide range of adhesives performance will optimised by selection of the most suitable grade to match your process parameters. Please contact us if you require any assistance in identifying a solution for your requirements.

br />Type – Synthetic resin emulsion
Viscosity – 500 to 1500 centipoise
Solids Content – 20% to 50%
For adhesive grade recommendations please contact your normal supplier.
